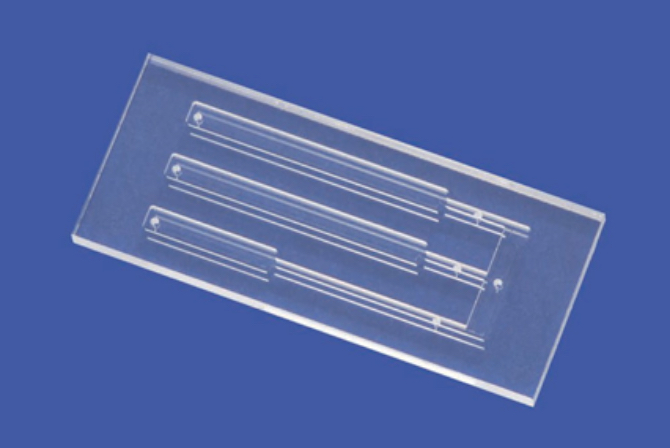

COP Microfluidics Prototyping | Microfluidic Chips

Specialty Plastics Portfolio

Zeon is the only manufacturer of Cyclo Olefin Polymer (COP) in the world and
offers precision microfluidics prototyping service using COP

Zeon’s service offers precision low-cost prototyping solution using
proprietary silane coupling bonding technology

Full prototyping service, from molding flat plates, cutting microchannels, to bonding

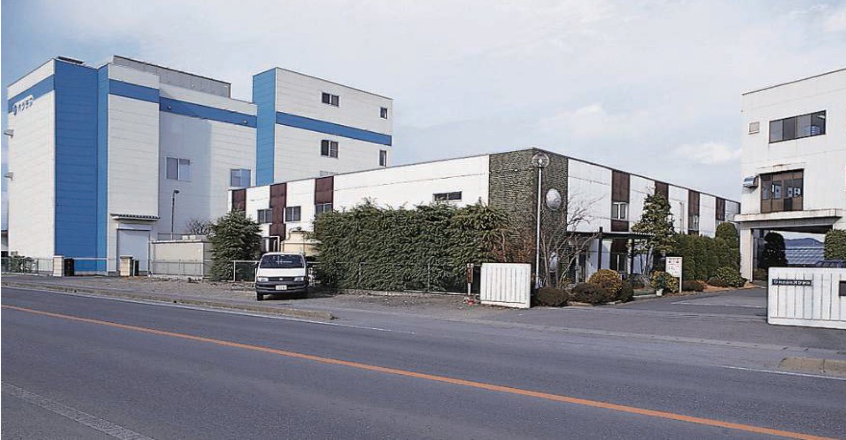

Fabrication in a Class 10,000 cleanroom
Fabrication time: 10 days
Accepting single unit orders as well as volume production

Provides material selection recommendations based on COP material expertise
Design verification service based on computer-aided design (CAD) engineering and structural analysis
Can create CAD data from handwritten drawings

Cutting	Bonding

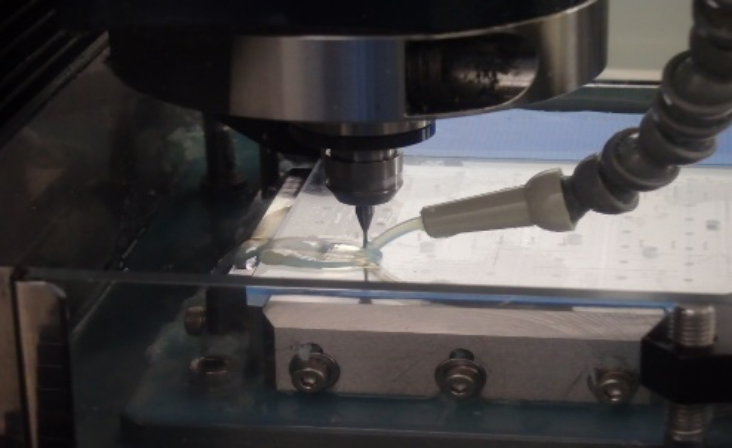

CNC machiningMin. width 50μm, min. depth 10μm	Zeon’s bonding (proprietary)
CNC machiningMin. width 50μm, min. depth 10μm	VUV activation (third party)
Injection molding	Adhesive (third party)

Cutting
CNC machiningMin. width 50μm, min. depth 10μm
CNC machiningMin. width 50μm, min. depth 10μm	Injection molding
Bonding
Zeon’s bonding (proprietary)
VUV activation (third party)
Adhesive (third party)
